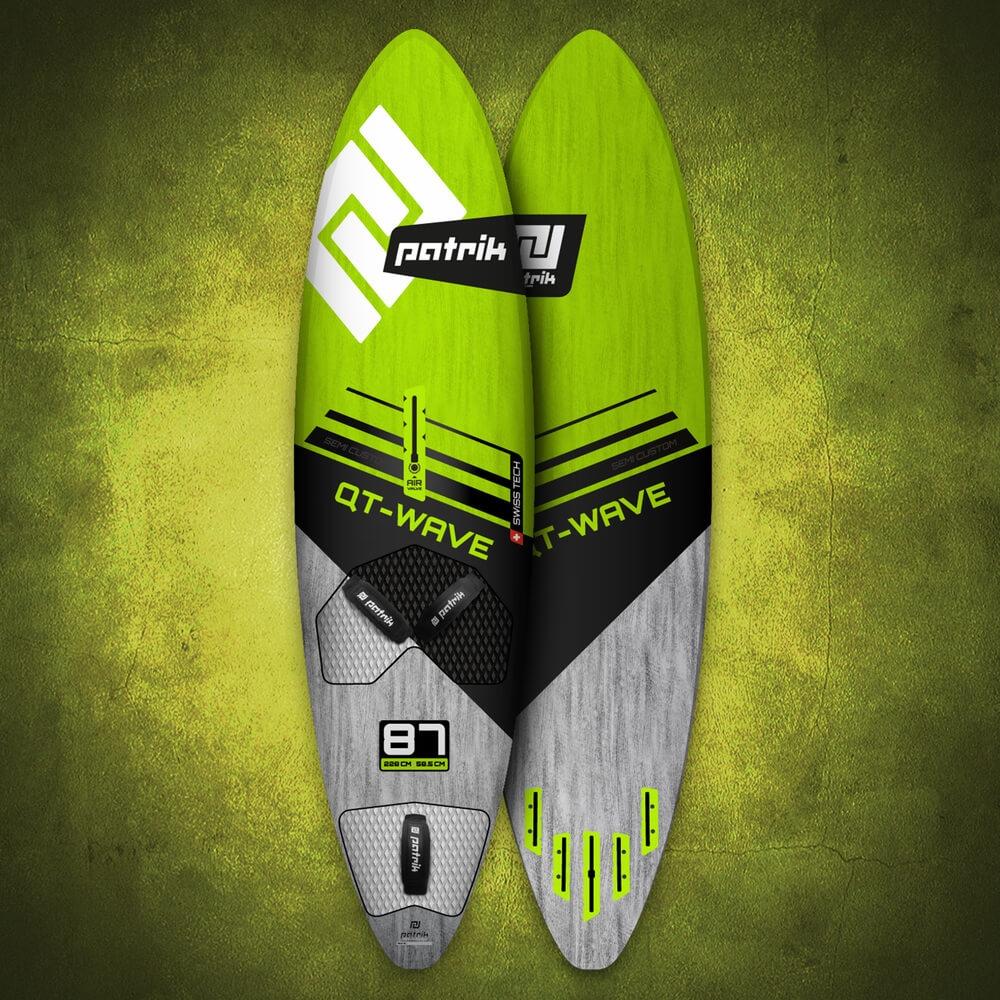

Patrik QT-wave

SKU: PATRIK_QT_WAVE
EAN code:
RRP:

76
82
87
94
102

AROUND-THE-GLOBE PERFORMANCE WAVE BOARD WITH  MULTIPLE FIN OPTIONS. NEW ROCKERLINE AND MORE VEE FOR AN EVEN BETTER WAVE PERFORMANCE.

OVERVIEW

Different wave spots, different conditions and different styles of riding make it really difficult to develop a high-level production wave board... but our QT-WAVE is the answer for those who want to travel light and play in any kind of wind and wave conditions.

With the 5 fin boxes (1x US, 4x Slot) you can setup the board as Singlefin, Twinser, Trailer, Tri-Fin, Thruster, Quad and even Trailer Quad (5Fin). With all these options you can perfectly adapt the QT-Wave to your style of riding and the type of waves the spot is offering.

WHAT'S NEW TO THE PREVIOUS MODEL:
- Modified tail rocker for a more agressive feeling on the wave and more control on the turns
- New Vee-shaped tail section for better water release and a more alive rail-to-rail feel
- Optimised strength-to-weight ratio and new graphics by Fabio Canella

SHAPE

Optical aspects & Footpads
With the new graphics influenced by Italian designer Fabio Canella we have created a colourful but still clean board design. The 6mm thick diamond groove grip pad has an extra 6mm soft sponge under-layer which makes it 12mm in total. The special layup uses the hard layer to spread the load onto a wider board surface via the soft bottom layer of the pad. This gives us more impact resistance while keeping a direct feeling under your feet.

Shape & Outline
Balanced and pretty. Shaped by hand. After thousands of boards shaped the experience and precision of our shaper Patrik Diethelm will easily outperform any CNC software. The result is a perfect shape with a beautifully flowing outline. The wider front section gives you enough lift in the nose area to go planing early and to be able to hit the whitewater late. The narrow tail gives you that agressive feeling when moving the board from rail to rail. Enjoy maximum grip in carved top turns. Choose between carving and throwing spray or sliding and new-school tricks on the wave. This board will never hold you back.

Scoop-Rocker and Bottom Contour
New Single into double concave into vee concept that creates more rocker on the rail line while keeping a moderate rocker in the center. This gives you the best of both worlds. Good accelleration and speed on the straight and more response and a playful radical feeling in the turns. A slight tail kick under your backfoot allows you adapt your turns to the wave any time. Progressive bottom shape with deeper concaves on the smaller sizes for more control. Connect fast sections with ease, throw some big spray... The new QT can do it all.

Fins & Fin Boxes
The QT-Wave comes with 4x PATRIK Power wave (PW) fins. Center US 8” box to allow the use of bigger single fins. 4 side slot boxes to save weight.

Inserts
Each insert offers 4-positions and on the front strap has a double plug to be able and change width and angle for different foot size and riding style.

Volume distribution
The balanced thickness under your feet and around the mast track is one of the key points to create a good allround wave board. A light dome deck allows as to keep thinner rails while 'hiding' some volume in the center of the board. This trick also improves the stiffness and break resistance of the construction. The much thinner tail area gives you control, grip and manoeuvrability.

Rails / Tucked
The round rails & tuck starting in the nose area make the board feel smooth troughout the turn. Round rails give you control and also more grip. Under the mast track the tucked show a slightly more visible edge which gets a little sharper between the straps and ends up sharp right behind the back strap for early planning acceleration and top speed.

Deck Shape
The smooth balance ov the whole shape is being carried over into all details. The light domed deck is more round at the front foot for a comfortable stand and good grip in the straps when planing and jumping. More flat under the backfoot for a better connection to the wave.

CONSTRUCTION

The topic where opinions split radically. But at the end of day let the advanced riders prove that our construction is built to last. The full carbon/kevlar deck is light and stiff with a good impact resistance. The Biax glass fibres on the bottom give you that controlled extra flex our riders love for the big turns and hard landings. Important fact: The softer biax glass spreads the load much better into the 3d construction than a full carbon bottom would. This results in better flex, better strength and better overall performance, while saving on production costs where it's not needed to offer you a more affordable board. Patrik Diethelms knowlede in composite construction is unmatched in the windsurf industry. This is our way of creating sustainable products that will last you many years when used correctly.

SPECS

  Length
Width
Volume
Tail Width
at 300
Nose Width
at 2000
Weight
(+/-6%)
Strap
Options &
Insert Holes
Strap
Quantity
Fin Box
qt-wave 76 2260 555 76 336 369 TBC 5×4 3 1xUS 8″
+4xSlot
qt-wave 82 2270 570 82 347 380 TBC 5×4 3 1xUS 8″
+4xSlot
qt-wave 87 2280 585 87 353 397 TBC 5×4 3 1xUS 8″
+4xSlot
qt-wave 94 2290 600 94 360 412 TBC 5×4 3 1xUS 8″
+4xSlot
qt-wave 102 2300 630 102 382 443 TBC 5×4 3 1xUS 8″
+4xSlot



BOARD PAINT COLOUR CODES:
Pantone 375cPantone Black

EVA COLOUR CODES:
Pantone Cool Gray 3cPantone Black

PATRIK FINS: S-Wave / P-Wave / P-Style

RANGE OF USE

    Sailor Type
(Weight & Size)
    Sailor
Skills
    Ideal Wind Strength
/ Sailor Type
    Water Conditions
  S M L Entry Advanced Pro Low Med High Flat Chop Wave
  less than 70kg / less than 170cm 70-90kg /170-190 cm more than 90kg / more than
190cm
uphaul, gliding all reaches waterstart, strap & harness, first jibes moves, waves, speed less than 15 knt 15-25 knt more than 25 knt flatwater / chop:
less than
1m
chop / wind waves: less than
2.5m
wind waves / swell: more than
2.5m
qt-wave 76 X X       X S S/M S/M/L   X X
qt-wave 82 X X       X S/M S/M/L M/L   X X
qt-wave 87  X X X     X M M/L M/L   X X
qt-wave 94   X X     X M/L M/L M/L   X X
qt-wave 102    X X     X M/L M/L L   X X



  Best Sail Size
Sail
Range
PATRIK Fins incl. with the board
Fin range
Quad
Fin range
Thruster
Fin range
Twinzer
Fin range Single
Boardbag size
qt-wave 76 3.8-5.2 3.3-5.6 2xSW145 +
2xSW80
2×140-160 &
2×80-90
1×180-210 &
2×80-100
2×155-170 200-240 ‌S
qt-wave 82 4.2-5.4 4.0-5.8 2xSW150 +
2xSW90
2×145-165 &
2×80-100
1×190-220 &
2×80-110
2×160-175 210-250 ‌S
qt-wave 87 4.4-5.6 4.2-6.0 2xSW155 +
2xSW90
2×150-170 &
2×80-100
1×200-230 &
2×80-110
2×165-180 220-260 ‌M
qt-wave 94 4.8-5.8 4.4-6.2 2xPW160 +
2xPW90
2×155-175 &
2×80-110
1×210-240 &
2×80-110
2×170-185 230-270 ‌M
qt-wave 102 5.0-6.0 4.6-6.4 2xPW165 +
2xPW100
2×160-180 &
2×80-110
1×220-250 &
2×90-120
2×175-185 240-280 ‌M

PRO TIPS

Thule

‌ SIMON THULE (Professional Surfer)
"I ride the QT-Wave as my go-to waveboard in almost any kind of conditions, from windy Denmark to perfect Western Australia. My favourite fin setup is thruster or quad as these setups make the board loose and radical. For more drive and control pick the quad setup. The best waveboard I've ever had!"

 HENNING (R&D Team)

"I love the QT-Wave87 with a wider stance. I mount the front strap all the way to the front on the waveriding side and in the 2nd insert hole on the jumping side but most importantly the back strap in the second last position. The backfoot all the way back on the tail gives the QT that amazing surfboard-like feeling. Sure it's a little more difficult to get planing but the control and feeling of the wide stance on the wave is just amazing for me. Try it for yourself and see if it works for you as well!? Also play with the P-Wave and S-Wave fins to adapt the board to different conditions. The thinner S-Wave profile with the classic wave outline offers much more grip and control on the wave while the low-rake P-Wave is clearly faster on the straight, better for big jumps and planing a touch earlier."

Henning Terstiege QT-Wave
