T4A 4Wave FLASH HD
PWA reg.
SKU: T4A_4Wave_FLASH_HD
EAN code:
RRP:
0,00 €
DIRECT AND AGRESSIVE 4-BATTEN SAIL WITH INSTANT POWER DELIVERY
OVERVIEW
RIDER TYPE: The Aggressive Charger & Big Air Specialist.
Developed for active riders who like clear power in their hands and prefer to sail powered up on the limit. It suits sailors who look at challenging conditions as a clear opportunity to ride faster and fly higher. The sail handles anything from super-windy Pozo to crazy North Sea to big and epic down-the-line Hawaii.
- On-Wave Behaviour: The pull comes slightly from the back hand, providing continuous feedback to the rider whether wave riding or jumping. In turns, this translates to drive both off the bottom and through the top turn, which is useful in onshore setups or less ideal wave shapes.
- Aerial Control: In the air, the steady power point and direct response keep it controllable and reactive. It focuses heavily on control, especially in its upper wind range.
PERFORMANCE
RANGE OF USE
Compare models
FEELING
SPECS
| Size | Luff | Ext. (+- 2cm) | Boom (+- 3 cm) | Best mast | Alternative mast | Vario top | AWR System | Weight |
|---|---|---|---|---|---|---|---|---|
| 3.1 | 325 | 15 | 139 | RDM 310 – IMCS 13 | RDM 340 – IMCS 15 | YES | YES | t.b.c. |
| 3.4 | 344 | 4 | 143 | RDM 340 – IMCS 15 | RDM 370 – IMCS 17 | YES | YES | t.b.c. |
| 3.7 | 360 | 20 | 146 | RDM 340 – IMCS 15 | RDM 370 – IMCS 17 | YES | YES | t.b.c. |
| 4.0 | 375 | 5 | 150 | RDM 370 – IMCS 17 | RDM 340 – IMCS 15 | NO | YES | t.b.c. |
| 4.2 | 385 | 15 | 152 | RDM 370 – IMCS 17 | RDM 340 – IMCS 15 | NO | YES | t.b.c. |
| 4.5 | 397 | 27 | 156 | RDM 370 – IMCS 17 | not recommended | NO | YES | t.b.c. |
| 4.7 | 405 | 5 | 159 | RDM 400 – IMCS 19 | RDM 370 – IMCS 17 | NO | YES | t.b.c. |
| 5.0 | 415 | 15 | 163 | RDM 400 – IMCS 19 | RDM 370 – IMCS 17 | NO | YES | t.b.c. |
| 5.3 | 426 | 26 | 166 | RDM 400 – IMCS 19 | not recommended | NO | YES | t.b.c. |
| 5.7 | 438 | 8 | 174 | RDM 430 – IMCS 21 | not recommended | NO | YES | t.b.c. |
TECHNICAL
Foil Feel Geometry: Slightly higher aspect ratio than the FLOW. The FLASH gives you a stable, foil-like feeling in the hands, granting good stability and a very direct rider-sail connection.
Rigid Framework: The front luff panel is constructed from X-Ply with a pre-shaped profile. This creates a stable power source that is always available and ready to accelerate.
Extended Power Release: To manage all this raw power, the leech profile is more open, helping to release excess energy efficiently. This allows you to push hard without losing control.
Built to last: Strong reinforcements and durable X-Ply window to survive heavy wipeouts.
FLASH 4Wave HD // STRIKE LIKE LIGHTNING.
FEATURES
The FLASH is influenced by the high winds of Gran Canaria and offers outstanding high-end control and drive for sailors who want instant power delivery.
An X-Ply Dacron panel and a pre-shaped profile create constant drive and loads of power for riders who love to go extreme. Extra tension on the sail body for a controlled ride - even in the most brutal and windy conditions.
Combined with the outstanding durability that our brand is known for, the result is a sail built to perform session after session - no compromises.

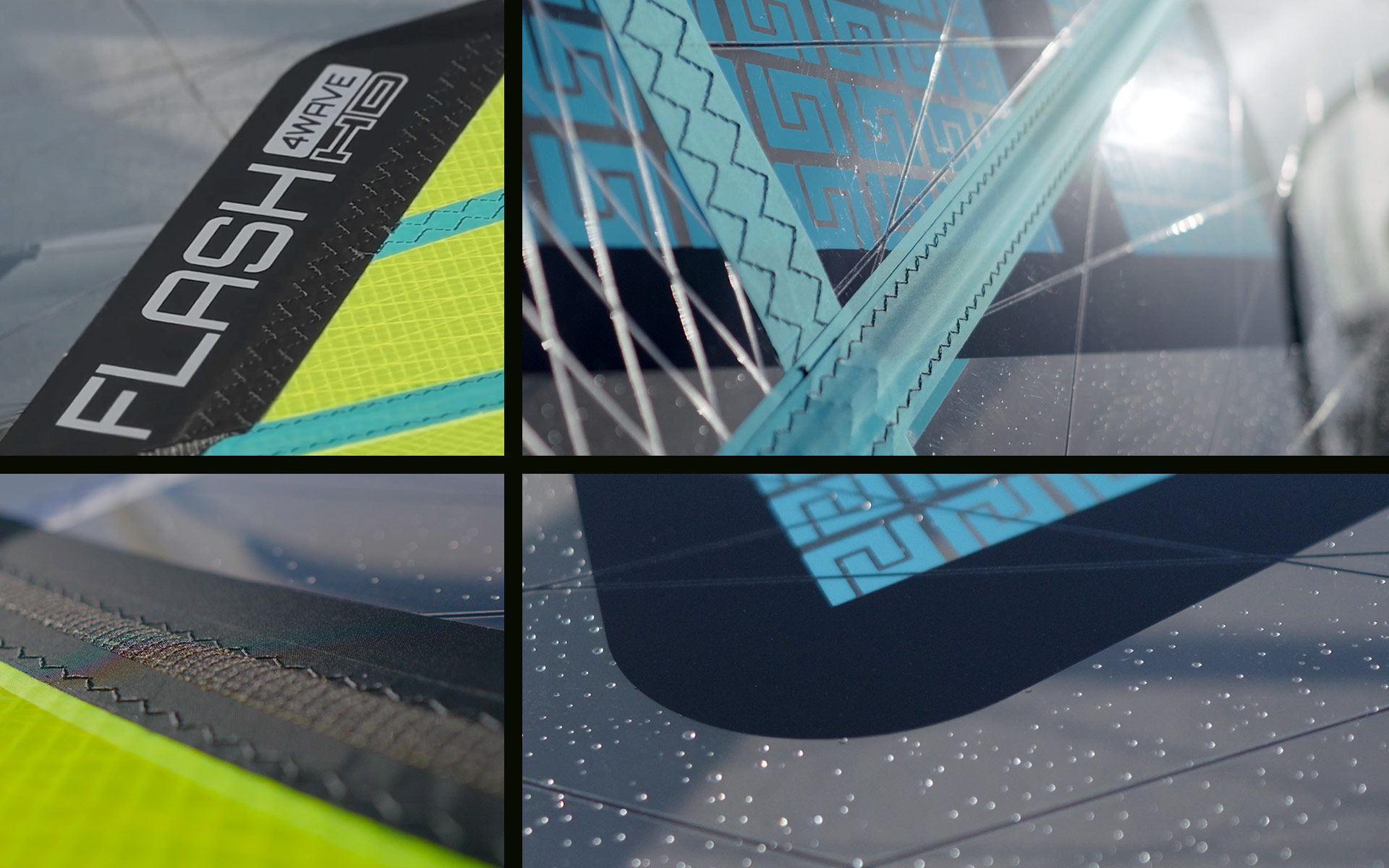

BLACKLINE HD WINDOW
Super strong and light 4mil "Blackline HD" X-Ply window for perfect visibility. The black yarn reduces light reflections and distractions, resulting in a clearer view that simply allows you to ride better and safer.
ADAPTIVE WIND RELEASE ( AWR )
Discover our unique Clew System: Switch seamlessly between IN and OUT configurations to gain extra twist while maintaining a full front draft.
Combine with dual clew height options for complete control over your rig's handling and style. * Full technical breakdown below.
AEROFIT BOOM POSITIONING ( ABP )
Reduces open area at the leading edge to boost aerodynamic efficiency and wind range. Limits sail movement at the boom area for improved gust stability and faster rotations. (Open a minimum of 2 sections to mount boom).
LOAD CONTROL LAYOUT
A unique concept for defining the sail profile (from front to rear) using an interacting material mix to control load, flex and twist across the entire sail body. Rather than relying on singular load lines, the whole sail functions as one intelligent entity.
-
Adaptive front section with custom load behaviour to support the individual sail characteristics best:
Soft Dacron for smooth On/Off behaviour on the FLOW.
5mil X-Ply for instand drive and agression on the FLASH.
Double Dacron for balanced power and a blend of FLOW and FLASH on the FUEL. -
Light and medium stiff 4mil body for a neutral loading behavior and optimal strength-to-weight ratio. Ultra light 2.5mil sail top for reduced swing weight.
- Stiff 5mil X-Ply frame at the leech for clean air release, better twist control, and added structural strength.
The unmatched aerodynamics and fine-tuned material load distribution of our Intelligent Load Control concept deliver added agility, more top speed, improved release and mighty low-end, while extending the overall wind range.
POWER PANEL OUTLINE
Pairs a wide center outline with a short boom and narrow head. The "power panel" above the boom catches cleanest airflow for controlled drive, while the narrow head ensures clean top release. As a result you get an extented windrange with mighty low-end acceleration, excellent clew-first stability and a very balanced and light handling.
FREEFLOW BATTENS
Customised batten curves and batten angles adjusted to each sail sail optimise the sail behaviour in both riding and jumping. Stiffer battens above the boom lock the power forward and flatten the trailing edge to reduce drag in gusty conditions. An optimised 40mm batten width with panel overlap makes the sail perfectly symmetric and saves weight. Our new, shorter batten tensioners reduce swing weight even more.
INTEGRITY SHIELD CONCEPT
A lightweight protection concept engineered to maximize durability while eliminating unnecessary bulk. By combining targeted Kevlar reinforcements and tailored padding, high-wear areas are fully shielded without compromising the sail's weight or responsiveness.
Hydrophobic Kevlar Protection in high-wear areas to protect your sail while always keeping it light in the water.
Streamlined EVA-padded Tack Fairing for optimal impact protection at the board deck.
SMART RIGGING AIDS
Visual rigging guide with "Power" and "Control" markers to define your optimal downhaul trim. Pulley threading guide for quicker gear setup.
PRO TIPS
SIMON THULE (Pro Windsurfer)
"The Flash allows me to sail more powered up and on the limit, which allows me to jump higher whilst still staying in control. The additional drive through turns really helps me to keep speed better when the conditions are not perfect. It’s the perfect sail for competing around the world in all conditions."
JOHN SKYE (R&D)
"The FLASH is influenced by the high winds at my home spot on Gran Canaria but works equally well all around the globe. If you like to ride powered up, his sail is the perfect match. It helps you to gain that extra meter of height in your jumps and deliveres constant drive on the wave. Make sure to apply sufficient downhaul tension to bring the sail to life."
RIG IT RIGHT
1) Pick your preferred mast
PATRIK RDM 100% CARBON CC: Quicker response, lighter, max performance.
PATRIK RDM 80% CARBON CC: Forgiving in chop/high wind, extra durability, budget-friendly. (RDM 60 not recommended).
Lighter riders below 60kg should consider picking the next softer mast and using a long extension for improved twist and release.
(Full performance is not guaranteed on third-party masts. Consult a PATRIK dealer before using non-PATRIK rig components.)
2) Set Aerofit Boom Positioning (ABP)
Open 2 ABP sections for optimal performance, height adjustment and a clean fit with most boom heads. If in doubt, or for added power, leave three ABP slots open.
(Height marker "0" is a good starting point for an 180cm tall rider.)
3) Choose your preferred AWR setting
Modifies release characteristics without altering sail profile or trim. Adjust on-the-fly while rigged. *
4) Set your personal downhaul tension
Set downhaul to find your preferred style (use outhaul for power adjustments). Pull until loose leech wrinkles are between the "power" and "control" markers in the top of the sail.
• Less downhaul: More forward drive, more lift, more top leverage.
• More downhaul: Softer release in top turns and big landings, more control.
5) Adjust the outhaul to set the sail's power level and directness
• Minimum setting: Batten above boom just flips with one hand; tip sits well in front of mast; sail touches boom. Maximum power and pumping ability.
• Optimal setting (+1cm tension): Batten tip is halfway behind mast; touches boom only in strong gusts. Neutral backhand, direct rotation, wide power range.
• Maximum setting (+2cm tension): Flat profile, extended high-end control, direct feel. Planing and pumping are compromised.
Important: Outhaul tension scales up and down with downhaul tension. Judge settings by overall sail shape, not spec box numbers alone.
* USING THE AWR SYSTEM
The upper AWR Shackle acts as both high clew ring and leech adjustment system (thread rope through shackle).
The Lower Ring improves comfort at lower boom heights. It increases twist while retaining full AWR options (In / Out).
Bolt maintenance: Uses a standard Allen Key "3". Fully tighten before riding. Loosen regularly to apply marine grease.
DANGER: Never ride with a loose bolt or without it installed (shackle will break).
The 4 Clew Height & AWR Combinations:
1) HIGH & IN = Power + Drive | Ideal for general power wave use. (recommended)
2) HIGH & OUT: = Power + Agility | The setup for better release.
3) LOW & IN = Control + Drive | Starting point for shorter riders.
4) LOW & OUT = Control + Agility | For smaller riders and pure down-the-line.
Videos
The FLASH 4Wave HD - THE T4A PROJECT
The FLOW 4Wave HD - THE T4A PROJECT
The FUEL 5Wave HD - THE T4A PROJECT
FLOW / FLASH / FUEL : Technical Features
Learn about the technical features of our new FLOW, FLASH and FUEL wave sails.
